There is a variety of custom options available for sketching, preference, or performance in the Sketching Aid menu.

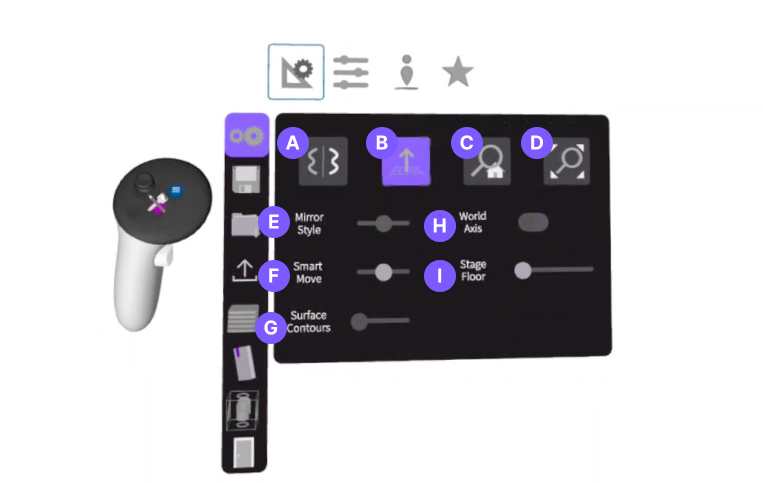

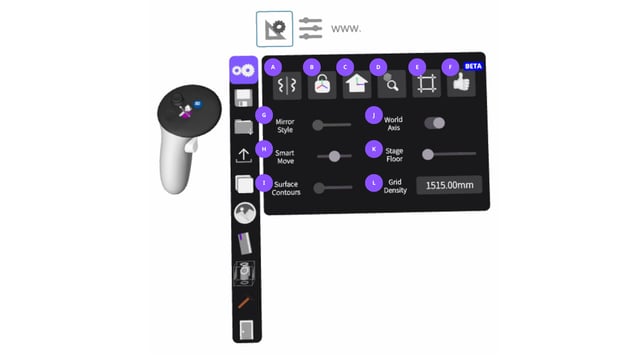

Sketching Aid Panel

To get to Sketching Aid:

1. Press the blue Menu button

2. Go to Settings

3. Select Sketching Aid

A. Mirror: Activate the World mirror for symmetrical drawing

B. Vertical Lock: Keep sketch always up

C. Home Orientation: Reset your perspective

D. Find My Sketch: Zoom all extents in the space

E. Mirror Style: Show different mirror styles when the mirror is on

F. Smart Move: Allow linear or rotational grab interaction. Check here for more information

G. Surface Contours: Show isoparm on surfaces

H. World Axis: Show the XYZ axis in the centre of the scene

I. Stage Floor: Create a square/circular floor automatically from the centre of the scene
