Gravity Sketch offers a variety of preference options to support usability needs.

Open and Set Preferences

To set the preferences:

1. Press the blue Menu button

2. Go to Settings

3. Select Preferences and switch the toggle buttons to your preferred

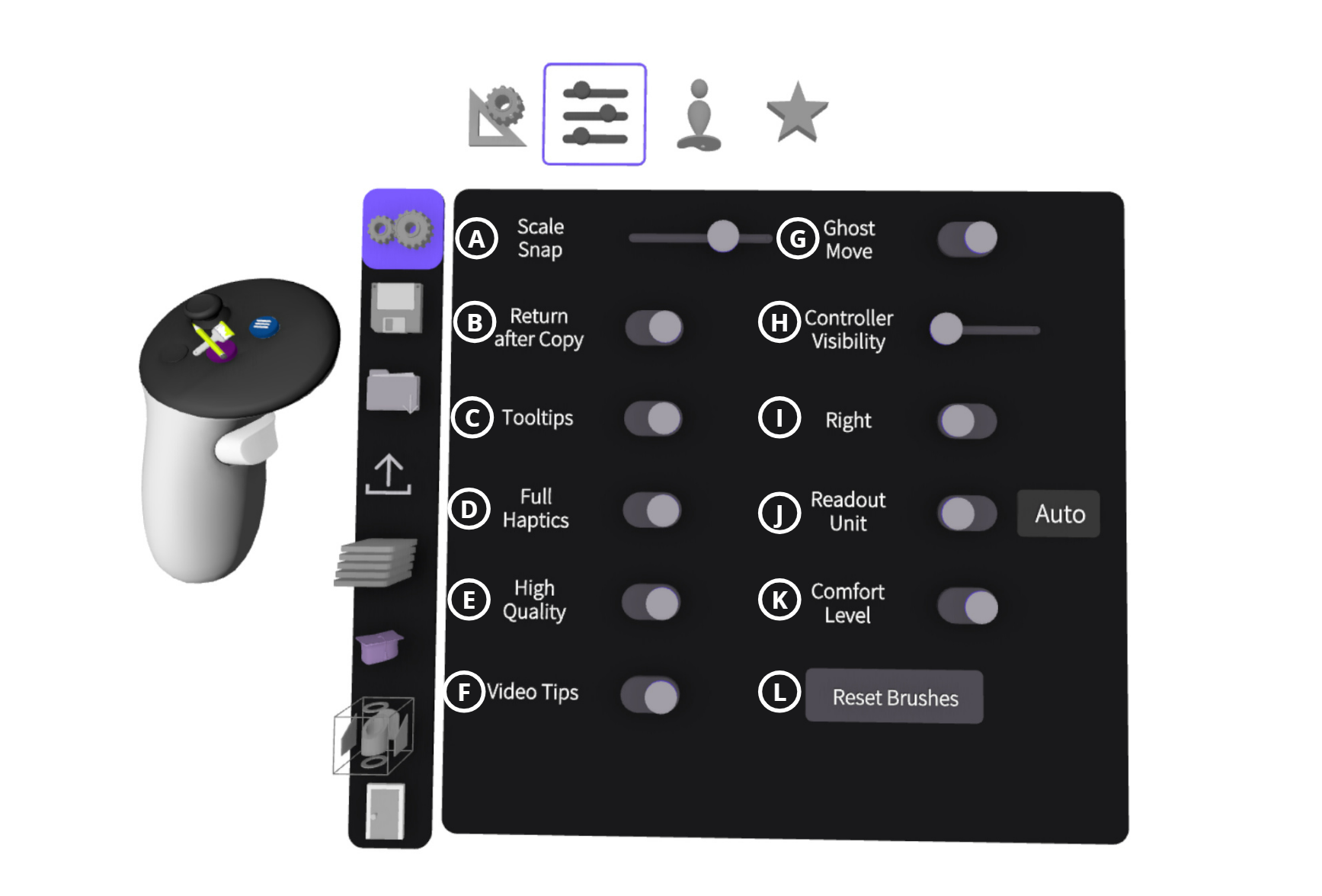

Preferences Panel

A. Scale Snap: Snap to common values when you scale the scene

B. Return after Copy: Objects return to their original position after duplication

C. Tooltips: Show hint text popups when you hover on interactive buttons and sliders

D. Haptics: Choose the amount of haptic feedback from the controllers (vibration)

E. Display Frequency: Select between 72hz, 80hz, 90hz and 120hz.

Note: when using a tethered headset this setting is replaced by High Quality option which will enable or disable the ambient occlusion. When enabled it will provide more realistic ambient lighting.

F. Video Tips: When enabled Videos Tips will appear to enable or turn off Video Tips

G. Ghost Move: When enabled, moving objects will leave behind a ghost to show where it started

H. Controller Visibility: Choose between 3 controller styles

I. Handedness: Switch to Left or Right handed. Alternatively, bump the bottoms of the controllers while holding them horizontally.

J. Readout Unit: Choose between Metric and Imperial units

K. Comfort Level: Choose Smooth or Blink Move comfort level. This applies when moving around the sketch with Teleporter (Banana) or between Viewpoints

L. Reset Brushes: Select to reset brushes to the default settings. Read more about it here.
